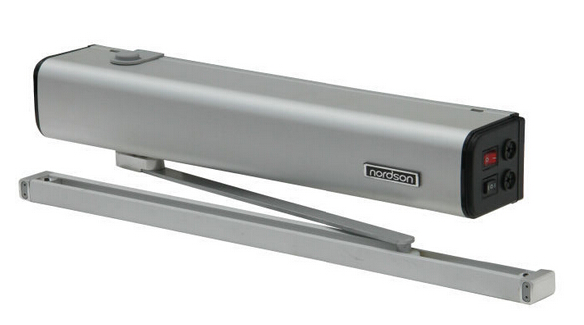

Electric Stainless Automatic Swing Gate Operator with High Strength
Silver Color
Description:
Auto Swing Operators are powered by an electric motor. The differ in how they use the motor's energy to open the door.
Operators use various internal technologies.
- Some are built on top of a standard door closer. To open the door,
the operator forces the closer in the opening direction. Then, the
closer closes the door. The user may open the door manually, using
just the door closer. In case of power failure while the door is
open, the closer itself closes the door.
- Some are built without a door closer. The motor opens and closes
the door through reducing gears. The operator may or may not
include a return spring to close the door in case of power failure
while the door is open.
Applications:
Swing Auto-Door opener can be opened and closed automatically in
any swing doors; it is widely used in Hotel, Hospital, Shopping Mall, Bank,
Commercial office building, etc.
Specifications:
Specs of swing door opener:
Door configuration: Single leaf
Limited Weight: ≤ 1X100kg
Door leaf width: ≤ 1200mm
Power voltage: AC 220V± 10%, 50-60Hz
AC 110V± 10%, 50-60Hz
Power consumption: 50W
Opening speed: 250-450mm/S(adjustable)
Closing speed: 250-450mm/S(adjustable)
Opening time: 3-7S(adjustable)
Hold-open time: 1-30S(adjustable)
Manual force: <30N
Swinging noise: ≤ 55dB

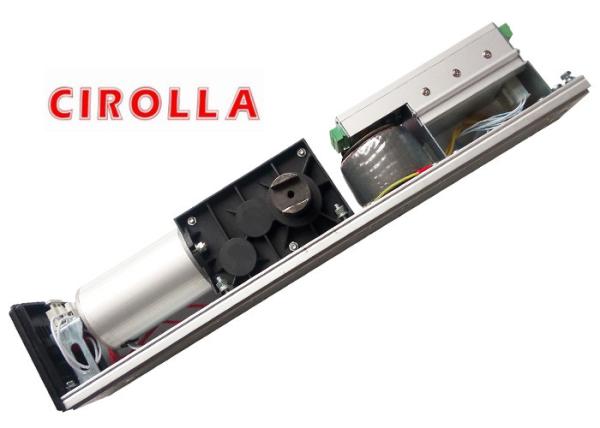

Data of Swing Door Opener Motor:
Type | Brushless |
Voltage | 24VDC |
Power | 75W |
No-load speed | 19rpm |
On-Load speed | 17rpm |
Noise level | ≤40dB |
Gear Ratio | 1:119 |
Protection class | IP44 |
Weight | 2.5kg |
Lifetime | 3million cycles,10years |
Application | Automatic swing door operator |
Competitive Advantage:
Swing Auto-Door opener can be opened and closed automatically in
any swing doors. Features:
1. It can realize the interlock function between door and door.
2. Driving devices works with low noise, reliable performance,
safety and brings living and working environment more convenience.
3. Innovation in mechanical design offers fast and effective
installation.
4. With sensors, access control, safety beam protection
interfaces,configurate electric lock, power output interface.
5. Wireless remote open mode is optional. When necessary, please to
configuration backup power for security requirements.
6. In case of meeting obstacles or personnel during operation, the
door will be opened to reverse direction.
