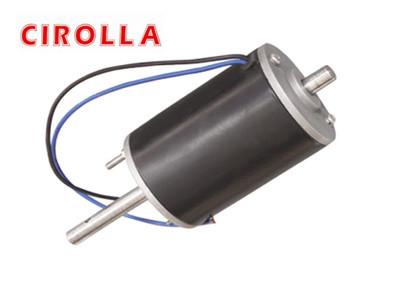

4200RPM Rolling Door Opener Motor Brushed with Low Noise and Long
Lifetime 24VDC
Description:
A roller shutter, roller door or sectional overhead door is a type of door or window shutter consisting of many horizontal
slats (or sometimes bars or web systems) hinged together. The door
is raised to open it and lowered to close it. On large doors, the
action may be motorized. It provides protection against wind and
rain. In shutter form, it is used in front of a window and protects
the window from vandalism and burglary attempts.
Applications:
Roller shutters have many applications, including doors for vans, garages, kitchens, schools, prisons and
warehouses. In some parts of the world, roller shutters are
subsidized by local governments due to the inherent security
benefits. In areas that are frequently exposed to inclement
weather, roller shutters are used as a method of insulation and can
protect windows against hail damage.
Specifications:
Performance data:
Type | Brush |
Voltage | 12VDC |
Power | 180W |
No load Speed | 4200rpm |
No load Current | 3.0A |
On load Speed | 3300rpm |
On load Current | 19.5A |
Stall torque | ≥655m.Nm |
Protection class | IP44 |
Weight | 2.0kg |

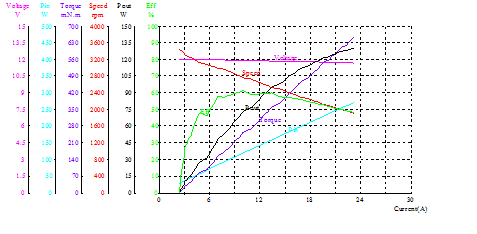

Characteristic curves:
State | Voltage | Current | Pin | Torque | Speed | Pout | Eff |
V | A | W | mN.m | rpm | W | % |
Speed_max | 12.02 | 2.391 | 28.76 | 0.1 | 3444 | 0.05 | 0.1 |
Eff_max | 11.90 | 10.01 | 119.2 | 253.8 | 2759 | 73.31 | 61.4 |
Pout_max | 11.66 | 23.12 | 269.6 | 650.3 | 1909 | 129.9 | 48.1 |
Torque_max | 11.65 | 23.26 | 271.2 | 655.3 | 1879 | 128.9 | 47.5 |
End | 11.65 | 23.26 | 271.2 | 655.3 | 1879 | 128.9 | 47.5 |
Competitive Advantage:
Courtesy light - Comes on automatically when the door is in use.
The light will stay on for approximately 3 minutes, then turns off
automatically.
Automatic Safety Reverse – Garage Ace sensors when someone or
something is in the way, and reverses automatically.
Safe and Secure - High security rolling code transmitters. Two
remotes supplied.
Manual Override - Motor can be easily disengaged in the event of
power failure for manual operation of door.
Handy Wall Switch - Door can be operated from switch on interior
mounted control box independently of remote transmitter.
Automatic Run Time - If motor is activated while disengaged, the
auto run time will turn motor off after 30 seconds
Quiet Operation - No need to let the neighborhood know when you
come and go!
DIY Installation - Step-by-step instructions will guide you through
installation. The opener can be installed on the left or right-hand
side of the door.
Outline drawings of motor:
