Automatic Sliding Door System Sliding Glass Door motor Automatic
Sliding Door opener
Motor functions and features:
1. We adopt brushless DC technology, service life of the brushless
DC motor is longer than the brush motor, and it can be with better
reliability.
2. Small volume, strong power, powerful working force
3. Ultra-quiet sound design, low noise, small vibration, we adopt
the automatic lubrication technology.
4. It is made with high-strength aluminum alloy material, strong
and durable.
5. It can work with the bearing metal alloy wheel driving belt, and
with good quality, stability and high applicability.
6. Fully sealed structure, durable, no leaking, we adopt the rubber
band to protect screws, which makes it to be with anti-pressure and
weight-bearing.
7. It can work with internal security protection circuit device,
even if the automatic door opens and closes frequently, it also can
run with long-term no-trouble.
Description:
1. CE SGS Certificate
2. 2 years warranty
3. Weight of door leaf:150kg/leaf
4. Power:80-250V Build-in Broadband voltage 50-60HZ
5. Ultra silent
Our Services
1.We have a very good working team, producing the most top quality
product for our customers.
2. We have aboundant experience of curtain and roller blind motors
and so on.
3.We provide the most comfortable and timely service (Pre-sale and
after-sale).
4.We have guarantee of our product if there is any problem cause by
our factory
5. We can do the product as customer design and also develop new
styles.
6.We have a factory, so we can provide the competitive price.
7.We provide ODM service
Technical Specification
Rang of the Door | Single-leaf | Double-leaf |
Clear door opening | 900-2800mm | 900-2800mm |
Door leaf max weight | 200kg | 150kg x 2 |
Height of track rail | 125mm |
Width of track rail | 156mm |
Power Supply | AC (AC220±10%), 50-60 Hz |
Opening Speed | 0.7m/s (adjustable) |
Closing Speed | 0.7m/s (adjustable) |
Power consumption | 70W |
Hold-open time | 0-9s (adjustable) |
Ambient temperature |
-20+50°C
|
Relative humidity(condensate) | 5%-85% |
Electric fuse |
6.3A
|
Accessorial voltage | AC24V,640mA |
Power supply | 80VAC-15% - 260VAC+10% |
Motor datas:
Type | Brushless |
Voltage | 24VDC |
Power | 75W |
No-load speed | 150rpm |
On-load speed | 120rpm |
Noise level | ≤50dB |
Protection class | IP44 |
Gear Ratio | 1:15 |
Weight | 2.5kg |
Lifetime | 3million cycles,10years |
Application | Sliding Glass door |
Constructure:

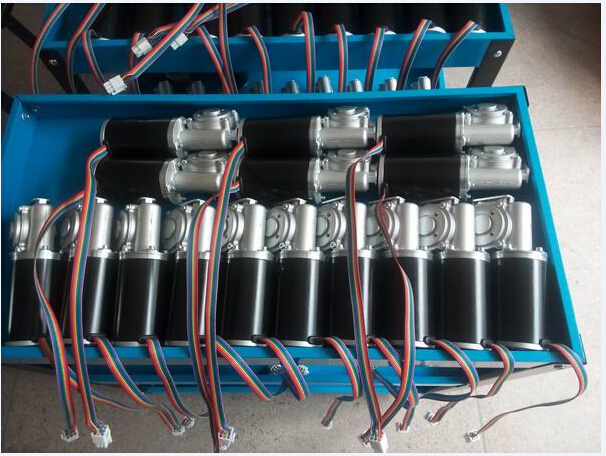

Product details:

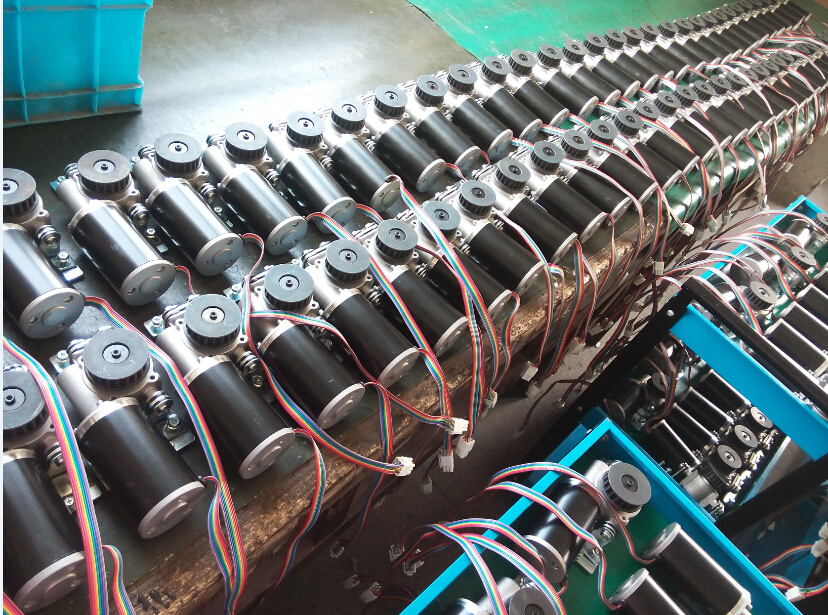

Production line:
