Automatic Glass Sliding Door System, Brushless motor, Aluminum
beam, CE certificated
Descriptions:

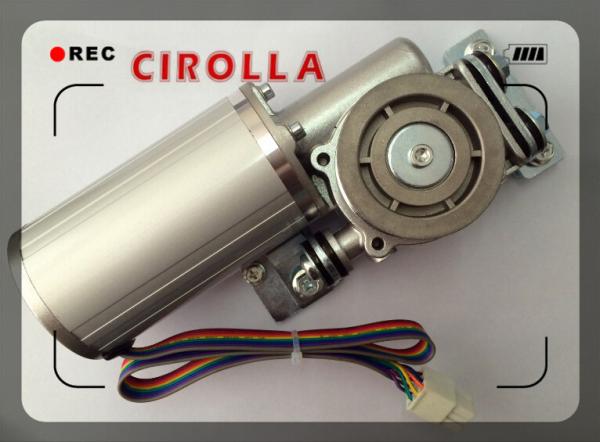

Popular 24V DC brushless automatic sliding door motor
POWERFUL,LONG LIFE
STEEL,ALUMINIUM
CE&ISO CERTIFICATED
MANUFACTURE
Safety Features
Multiple functionality allows you to choose from manual operation,
automatic full open, automatic half open, one way in/out and locked
conditions as required.
37 built-in parameters including door opening speed, closing speed,
half opening width, open time and lock status can all be adjusted
at your convenience to achieve an optimum state.
2. Quality assurance guarantees
All models have undergone over 3,000,000 inspection examinations
including high and low temperature tests. Models have been run for
72 hours at 70 degree with out trouble. Low temperature tests prove
normal running operation to an impressive -17 degree .
3. Safety
The door leaves will automatically reverse motion when resistance
is detected. Optional electronic locking mechanisms protect users’
safety.
4. Intelligence
The unique PSA control board offers quick and easy function
adjustment and overhaul. Placed within 50 meters of the main door,
it is capable of handling function adjustment, parameter
adjustment, function selection and breakdown diagnosis display.
The operator adopts a modularized design extending the automatic
doors life-span, allowing for convenient examination, repair and
safeguarding.
5. Quietness
Drive unit adopts a quality speed reduction mechanism, KBB's own
creation, a special nylon fiber guide rail and a self-lubricating
nylon load bearing pulley mechanism. All greatly reducing the
automatic doors motion noise and giving users a quieter and more
comfortable experience.
Technical Data
Power supply: 220VAC±10%,50HZ ,10A
Rated power:75W/100W
Max. door opening weight:150N
UPS backup battery: 30min
Ambient temperature: -30 ~ 50 degree
Max. relative humidity: 90%
Protection level: IP23
Remarks: Design and specification are subject to change without
notice. Products are tailored to meet your requirement.
Door Datas:
| Max door weight(single) | 1x200 kgs |
| Max door weight(double) | 2x150 kgs |
| Door leaf weight | 700-1300mm |
| Opening speed | 150-500mm/s(Adjustable) |
| Closing speed | 100-450mm/s(Adjustable) |
| Square Motor | 24V 60W Brushless DC motor |
| Opening time | 0-9second(Adjustable) |
| Voltage | AC90-250V 50Hz-60Hz |
Operating Temperature | -20°C-70°C |
Key Components
1, Door glass: Laminated glass/Tempered glass
2, PSA control panel
3, Aluminum alloy frame
4, Motor: Dunkermotoren
5, Carriage wheel
6, Supporting rails
7, PHILIPS CPU
8, Radar
9, Safety beam - Option
10, Key switch - Option
11, Back-up battery - Option
12, Double drive unit - Option
13, Electro-mechanical lock - Option
Production line:
Cirolla Packages:
