High Power Low Noise Sliding Glass Door Motor Brushless Safety with Automatic Stop

Description:

1) Input power supply AC110V-240V;
2) DC24V brushless motor

3) Door Weight 300kg/single leaf, 2X150kg/ Double leaves

4) Door Width: 650~1600mm

5) Maximum Noise below 50dB

6) Railing Type: High Strength Aluminum Alloy Rally

7) Fixed Pulley Hanging Wheel Sets/Convenient Level Adjustment/Automatic Alignment/Easy Installation

8) Working Temperature-25~ c+55 c

Applications:

This Heavy duty automatic Sliding door round motor type Brushless DC Motor can be used on any kinds of Automatic doors: Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, and Hospital Door etc. Which are widely used in Hotel, Hospital, Shopping Mall, Bank, Commercial office building and etc.

Specifications:

Round type Brushless dc motor:

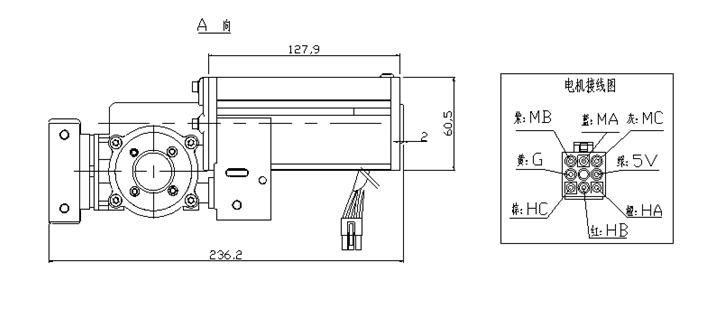

Motor Outline drawings:

Competitive Advantage:

1. LOW NOISE than brushed motor, because of its precise manufacturing technology and direct driving design.

2. Brushless motors have LONG LIFE than brushed motors (more than 3,000,000 cycles), with 10years warranty.

3. Small size and Excellent Design, high-strength wear-resistant gears and high processing makes it more stable, quiet, longer life, higher efficiency, larger torque.

4. Leading technologies, multi- functions, dependable performance while being cost efficient.

5. Widely used for Automatic Doors: including Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, Hospital Door, be installed in the hotels, airports, office buildings, shopping malls, hospitals etc.

Cirolla Motor Co., ltd is leading manufacturer of DC motors. Our motors are widely used in the filed of Automatic door system, Health& Medical equipments, Automation machinery, Automobile and Aerospace industry.

We have nearly 20years history of designing& producing PMDC motor and BLDC motors. Our technology are fully developed in traditional brush gear reduction motor,   Presently we are investing more into the production of brushless motors, which is high efficiency, low noise, stable reliability and long life time.

Our company is qualified by ISO 9001:2008 & IS16949 and audited by TUV &SGS. Our motors are CE approved by EC declaration of EMC and LVD conformity. Our annual output is 300,000-50,000sets.

Our motors are exported to worldwide markets, mainly in Europe, North &South America, South-east Asia and Australia. We supply ODM & OEM service to the world's clients. We look forward to producing higher efficiency, quieter, green motors for the world!
