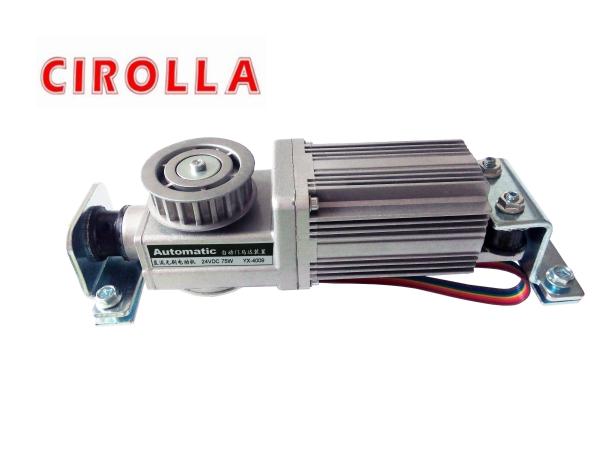

24V Automatic Sliding Door Motor with Silent Working / Square Brushless DC Motor

Quick Detail:

Code: 4009 Type: Brushless Operation Voltage: 24VDC Power: 75W

Rotate Direction: CW &CCW Application: Automatic door Door Open style: Sliding

Opening type: With Remote Control Function able: Automatic operation/hold-open/closed/half-open

Security: Automatic stop/reverse during opening or closing

Door Weight Bearable: 300kg /2 Leaves Door Width: 650~1600mm

Environment temperature: -20 ~ +50ºC Lifetime: 3million cycles, 10years

Description:

Brushless motor is drive device for automatic sliding doors, with silent operation, has big torque, long service life and high efficiency. It adopts European technology to integrate motor with gear box, which offers strong driving and reliable operation and increased power output, it can adapt to a large doors. Helical gear transmission in the gear box ensures the stable and reliable operation, even used for heavy door, the whole system operates easily.

The control device of sliding automatic door contains basic function and extensional function, automatic operation/hold-open/closed/half-open to meet customer needs. Opening/closing speed setting and adjustment is accurately controlled by microcomputer controller.

Applications:

Square Brushless DC Motor can be used for any kinds of automatic doors: Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, Hospital Door

Which are widely used in Hotel, Hospital, Shopping Mall, Bank, Commercial office building, etc.

Specifications:

Automatic Sliding Door Motor Specs:

Automatic sliding door Working orbit:

Outline drawings of Automatic Sliding Door Motor:

Automatic sliding door Application Examples:
