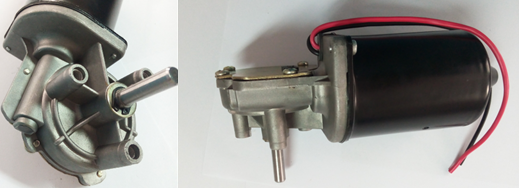

High Speed Brushed Gear Motor 12V/24VDC for Automatic Machines 40W

Quick Detail:

Type: Worm gear DC Motor Voltage Power: 12/24VDC, 40W

Construction: Permanent Magnet Structure and Working Principle: Brushed

Operating Speed: High Speed Gear material: bronze

Application: Universal, Industrial, Household Appliances, machine power system

Description:

The Brush DC Motor stator is stationary, while the rotor rotates with respect to the Brush DC Motor stator. When power is applied to the Brush DC Motor rotor windings, the polarity of the winding and stator magnets is misaligned, and the Brush DC Motor rotor rotates until it is almost aligned with the stator magnets. As the Brush DC Motor rotor reaches alignment, the brushes in the Brush DC Motor move to the next commentator contacts, and energize the next winding. This results in a current reversal, thus causing the winding and Brush DC Motor stator magnets to misalign again. This process repeatedly is what keeps a Brush DC Motor rotating.

Applications:

The Brush DC Motor is particularly a favorite in the automotive industry because of its simplicity and affordability. Many automotive manufacturers use them for power windows, seats, etc. However, the Brush DC Motor can be found in nearly every industry ranging from computers to manufacturing.

Specifications:

Motor specs:

Test report of motors:

Competitive Advantage:

• The Brush DC Motor has a simple construction, therefore may not require a controller. When a controller is chosen, it is typically a simple and inexpensive drive design.
• Understandable design technology facilitates in the quick application of the DC Brush Motor
• The design of the Brush DC Motor is quite simple, in that a permanent magnetic field is created in the by either of two means; permanent magnets or electro-magnetic windings

Cirolla Motor Co., ltd is leading manufacturer of DC motors. Our motors are widely used in the filed of Automatic door system, Health& Medical equipments, Automation machinery, Automobile and Aerospace industry.

We have nearly 20years history of designing& producing PMDC motor and BLDC motors. Our technology are fully developed in traditional brush gear reduction motor,   Presently we are investing more into the production of brushless motors, which is high efficiency, low noise, stable reliability and long life time.

Our company is qualified by ISO 9001:2008 & IS16949 and audited by TUV &SGS. Our motors are CE approved by EC declaration of EMC and LVD conformity. Our annual output is 300,000-50,000sets.

Our motors are exported to worldwide markets, mainly in Europe, North &South America, South-east Asia and Australia. We supply ODM & OEM service to the world's clients. We look forward to producing higher efficiency, quieter, green motors for the world!
