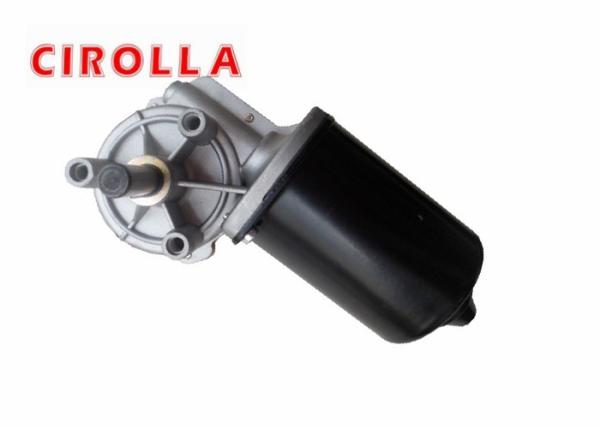

Noise Free Gear Brushed DC Electric Motor 12V / 24V PMDC for
Automatic Industrial
Quick Detail:
Type: Worm gear DC Motor Voltage&Power: 12/24VDC,40W
Construction: Permanent Magnet Structure and Working Principle:
Brushed
Operating Speed: High Speed Gear material: bronze
Application: Universal, Industrial, Household Appliances, machine
power system
Description:
An electric motor is an electrical machine that converts electrical energy into
mechanical energy. The reverse of this would be the conversion of
mechanical energy into electrical energy and is done by an electric
generator.
In normal motoring mode, most electric motors operate through the interaction between an electric motor's
magnetic field and winding currents to generate force within the
motor. In certain applications, such as in the transportation
industry with traction motors, electric motors can operate in both
motoring and generating or braking modes to also produce electrical
energy from mechanical energy.
Applications:
Electric DC Motors have a wide variety of uses and are found in
cars, clocks,drills, fans, fridges, hair dryers, toothbrushes,
vacuum cleaners,water pumps (for fish tanks, central heating, fire fighting) washing machines,
hard disk drives, DVD players, electric vehicles and industrial
equipment including extruders,fork-lift trucks, lathes, mills,
hoists, robots and winches.
Specifications:
Motor specs:
Type | Brush |
Voltage | 12/24VDC |
Power | 40W |
No load Speed | 85rpm |
No load Current | 0.6A |
On load Speed | 70rpm |
On load Current | 3.5A |
Stall torque | 16Nm |
Gear material | Nylon |
Protection class | IP44 |
Weight | 1.5kg |
Competitive Advantage:
- Low Maintenance Requirements - Electric motors are durable and have extensive operating life
and minimal service requirements.
- High Efficiency - Electric motors are highly-efficient with ratings that range
from 50% to 95% (depending on the motor's size and operating
conditions).
- Low Initial Cost - The initial cost of an electric motor is considerably lower than
a fossil-fuel engine with the same Output Horsepower Rating (in
nearly every case).
- Long Life - Because electric motors contain relatively few moving parts,
they have extensive operational life spans. For instance, an
appropriately selected and maintained electric motor offers up to
30,000 hours of operating life without major repairs. (This is the
approximate equivalent of 3½ years of perpetual usage.)
